Custom steel structure warehouse buildings designed and fabricated for warehouses, logistics centers, factories and industrial projects. Get engineering support, detailed quotation and global delivery from China.

Steel Structure Warehouse

Custom Prefabricated Steel Warehouse Buildings for Storage, Logistics & Industrial Projects

A steel warehouse is more than a combination of steel columns, beams and roof panels.

The building needs to work with your storage layout, loading requirements, local climate, equipment, insulation requirements and future expansion plans.

Steelapro provides customized steel structure warehouse solutions from engineering and structural design to fabrication, quality control, packing, shipping and installation support.

Whether you need a general storage warehouse, logistics center, industrial warehouse, agricultural building or large-span storage facility, our engineering team can develop a solution around your actual project requirements.

Get a Project Quote

Steel Structure Warehouse Solutions Built Around Your Project

Every warehouse project is different.

A 20 m × 40 m storage building does not have the same structural requirements as a 40 m × 80 m logistics center. A warehouse in a heavy-snow region also needs a different structural design from a similar building in a low-snow area.

Before fabrication, we consider the building's dimensions, purpose, location, loads, openings, insulation, equipment and other project requirements.

Our goal is simple:

Design the steel building around your project — not force your project into a standard building.

Typical Applications

General Storage Warehouse

Logistics Warehouse

Distribution Center

Industrial Warehouse

Manufacturing Facility

Equipment Storage Building

Agricultural Storage Building

Machinery Warehouse

Commercial Storage Building

Workshop and Production Facility

Why Choose a Steel Structure Warehouse?

01. Maximize Usable Space

Steel structures can provide large clear-span areas with fewer interior columns.

This gives you more flexibility for:

Storage racks

Forklift movement

Production equipment

Loading areas

Internal transportation

Future layout changes

For warehouses where usable floor area is important, structural layout should be considered together with the operational plan.

02. Flexible Building Dimensions

A prefabricated steel warehouse can be customized according to the project.

Typical design parameters include:

Building length

Building width

Eave height

Roof slope

Bay spacing

Door locations

Window locations

Crane requirements

Mezzanine requirements

Roof and wall systems

The dimensions are not simply selected from a fixed product catalogue.

They are coordinated with the structural design.

03. Efficient Factory Fabrication

Steel components are fabricated in the factory according to approved engineering and shop drawings.

Factory fabrication allows important dimensions, connections, welding and surface treatment to be controlled before the components are shipped to the project site.

This can help reduce unnecessary site fabrication and make installation more organized.

04. Adaptable to Different Climates

Steel warehouses can be engineered according to project-specific environmental conditions.

Depending on the location, design considerations may include:

Wind load

Snow load

Seismic requirements

Roof live load

Rainfall

Temperature

Corrosion environment

Local building codes

The same building size may require different structural solutions in different countries.

05. Easy to Customize

A warehouse can be designed around the way your business operates.

Optional features may include:

Large roller shutter doors

Sliding doors

Personnel doors

Fire doors

Windows

Skylights

Ventilation

Roof ventilators

Insulated panels

Overhead cranes

Mezzanine floors

Canopies

Loading areas

Solar-ready roof provisions

06. Consider Future Expansion

If you expect your warehouse to grow in the future, expansion can be considered during the initial design stage.

The building layout, column arrangement, end walls and connection details can be reviewed with future expansion in mind.

Planning this early can be much easier than modifying an existing building later.

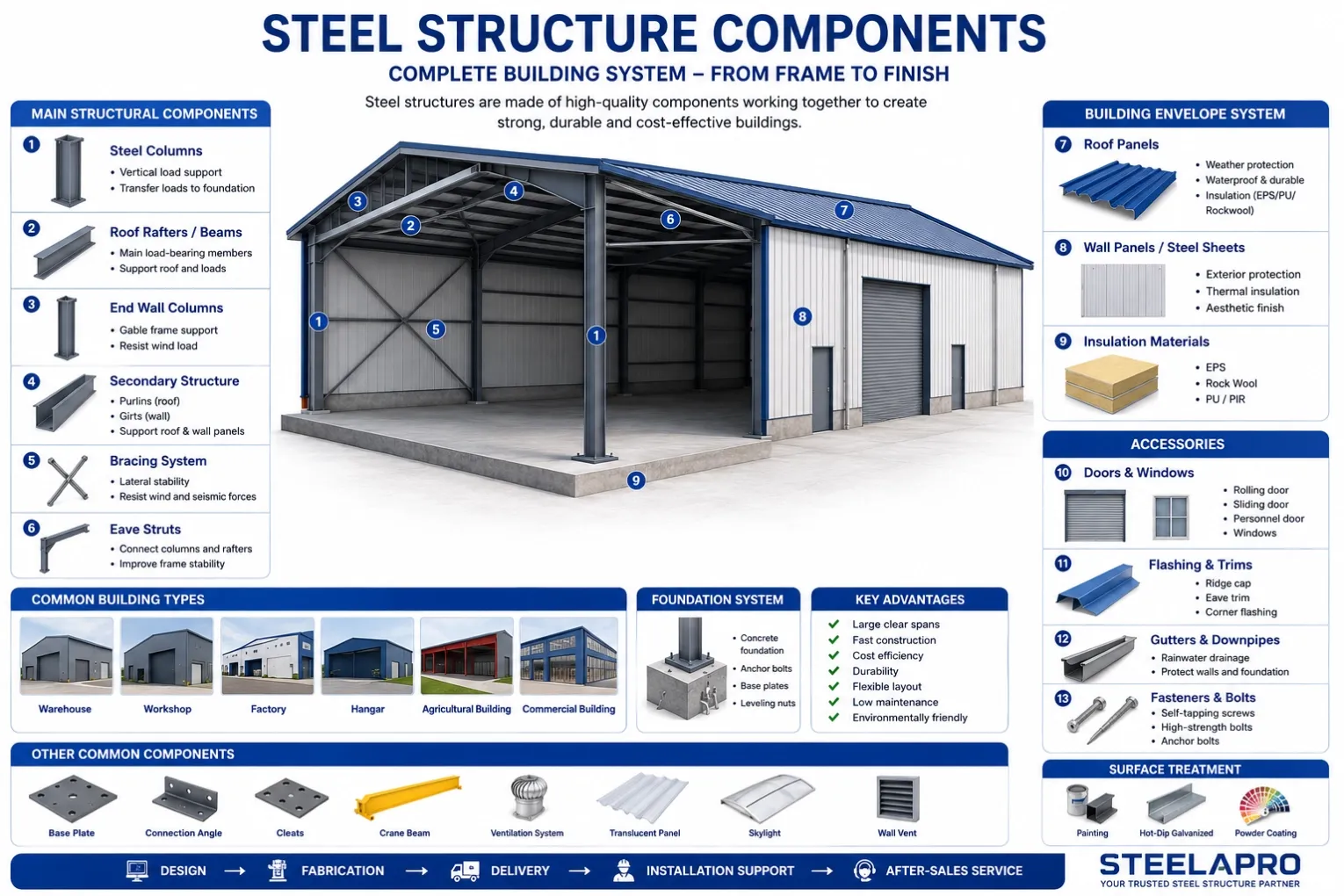

Complete Steel Warehouse Building System

A complete steel warehouse is a building system rather than a single steel product.

The major components need to work together from engineering through installation.

Primary Steel Frame

The primary structure normally includes:

Steel Columns

Steel Rafters

End Wall Frames

Base Plates

Connection Plates

Built-up Steel Members where required

The primary frame carries the main structural loads and transfers them to the foundation.

Secondary Steel Structure

Secondary members support the roof and wall systems and contribute to the overall stability of the building.

Typical components include:

Z Purlins

C Purlins

Wall Girts

Eave Struts

Roof Bracing

Wall Bracing

Tie Rods

Sag Rods

The exact member sizes and spacing are determined by engineering calculations and project requirements.

Roof System

Different roof systems can be selected depending on the building's use and environmental requirements.

Single-Layer Steel Roofing

Suitable for:

General storage

Agricultural buildings

Equipment shelters

Warehouses without high thermal requirements

Insulated Sandwich Panel Roofing

Suitable when the building requires better thermal performance.

Available options may include:

EPS Sandwich Panel

Rock Wool Sandwich Panel

PU/PIR Sandwich Panel

Roof insulation thickness should be selected according to the project's climate, indoor requirements and applicable standards.

Wall System

Wall systems can be customized according to project requirements.

Options include:

Single-layer Profiled Steel Sheet

EPS Sandwich Panel

Rock Wool Sandwich Panel

PU/PIR Sandwich Panel

Combination Wall Systems

The wall system can be selected according to:

Thermal insulation

Fire performance

Appearance

Waterproofing

Corrosion environment

Budget

Building usage

Steel Warehouse Structural Design

Designed for Your Site, Not Just Your Dimensions

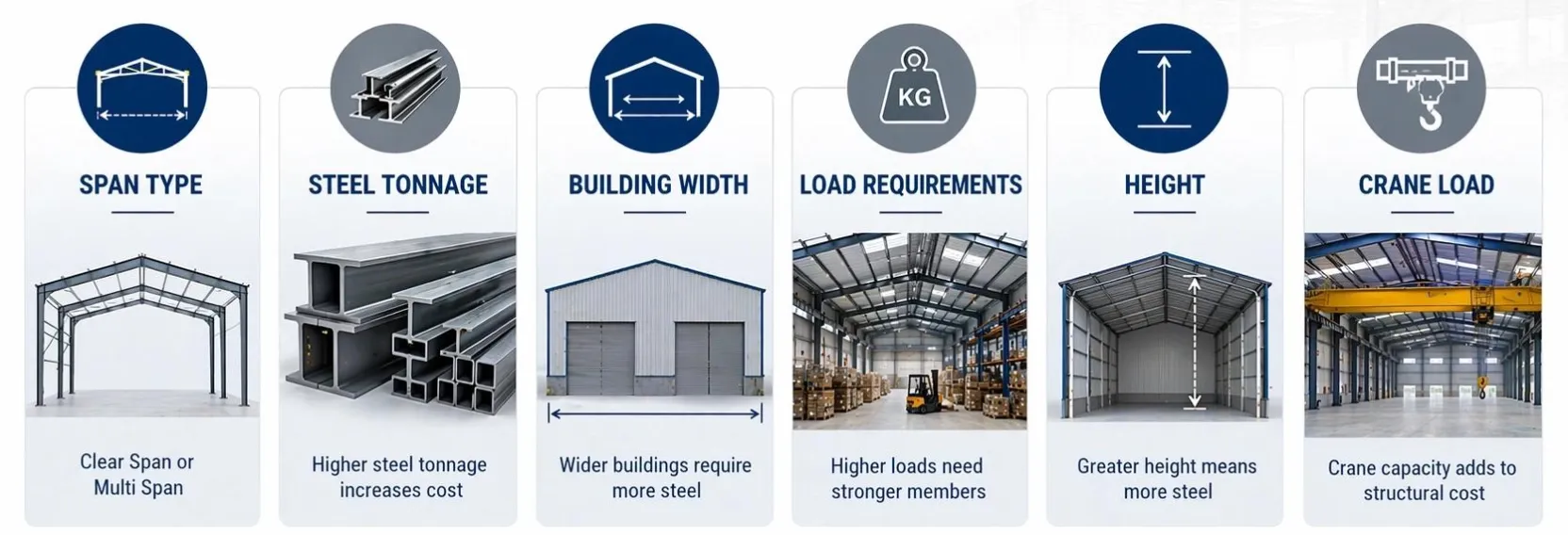

One of the most important parts of a steel warehouse project is structural engineering.

Building dimensions alone are not enough to determine the final steel structure.

For example, a 40 m × 80 m × 8 m warehouse provides the basic geometry, but the engineer still needs to understand the project location, wind conditions, snow loads, seismic requirements, building usage and other design conditions.

A warehouse in Canada with significant snow loads cannot simply use the same structural design as a warehouse with the same dimensions in a low-snow region.

Our engineering process considers the actual project conditions before fabrication.

Information We Review

Project Location

Building Length

Building Width

Eave Height

Building Usage

Wind Speed

Wind Load

Snow Load

Seismic Requirements

Roof Live Load

Roof Slope

Bay Spacing

Door Openings

Window Openings

Crane Requirements

Mezzanine Requirements

Insulation Requirements

Fire Requirements

Corrosion Environment

Local Building Codes

Available Foundation Information

Steel Warehouse Design Options

Clear Span Steel Warehouse

Clear-span buildings are suitable when large unobstructed interior areas are important.

Typical applications include:

Logistics

Manufacturing

Large Storage

Distribution Centers

Equipment Storage

Fewer interior columns can provide greater flexibility for storage and material handling.

Multi-Span Steel Warehouse

Multi-span structures can be considered for very wide buildings where interior columns are acceptable.

They may provide an efficient structural solution for large floor areas.

The most suitable system depends on:

Building width

Operational requirements

Column arrangement

Crane requirements

Structural loads

Foundation conditions

Budget

Single-Slope Steel Warehouse

Single-slope structures can be used for:

Building extensions

Attached storage

Loading areas

Site-specific projects

Buildings with height restrictions

The roof configuration should be coordinated with drainage, structural requirements and surrounding buildings.

Steel Warehouse Parameters

Parameter	Typical Solution
Building Width	Customized
Building Length	Customized
Eave Height	Customized
Roof Slope	Project Specific
Bay Spacing	Engineering Design
Steel Grade	Q235B / Q355B or Equivalent
Primary Frame	H-Section / Built-Up Steel
Secondary Structure	C/Z Purlins & Girts
Roof	Steel Sheet / Sandwich Panel
Wall	Steel Sheet / Sandwich Panel
Insulation	Optional
Crane System	Optional
Mezzanine	Optional
Doors	Customized
Windows	Customized
Ventilation	Optional
Skylight	Optional
Surface Treatment	Painting / Galvanizing where required
Delivery	EXW / FOB / CFR / CIF

Final material specifications and member sizes are determined according to structural calculations and project requirements.

Roof & Wall Systems

Choosing the Right Building Envelope

The cheapest cladding system is not always the best choice.

The roof and wall system should be selected according to how the building will actually be used.

Single-Layer Steel Sheet

Single-layer profiled steel sheets can be a practical choice for warehouses where high thermal insulation is not required.

Suitable For

General storage

Agricultural storage

Equipment shelters

Basic warehouses

Unconditioned buildings

Advantages

Simple system

Lower initial cost

Lightweight

Fast installation

Easy maintenance

Rock Wool Sandwich Panel

Rock wool sandwich panels can be considered where fire performance, thermal insulation and acoustic performance are important.

Suitable For

Industrial Buildings

Manufacturing Facilities

Workshops

Commercial Buildings

Worker-occupied Facilities

The panel thickness and specifications should be selected according to project requirements.

PIR / PU Sandwich Panel

PIR and PU insulated panels can provide improved thermal insulation for buildings where indoor temperature control is important.

Suitable For

Temperature-sensitive storage

Industrial Buildings

Commercial Buildings

Cold or hot climates

Buildings with higher insulation requirements

The appropriate panel type should be selected according to thermal, fire and local code requirements.

Warehouse Doors & Openings

Doors Are Part of the Structural Design

Large doors are not simply added after the building is designed.

A large opening changes the surrounding framing and should be considered during structural design.

We can coordinate the steel structure with:

Roller Shutter Doors

Sliding Doors

Personnel Doors

Fire Doors

Loading Doors

Windows

Louvers

Ventilation Openings

Important Information for Door Design

For large warehouse doors, we normally need:

Door Width

Door Height

Door Quantity

Door Location

Opening Direction

Door Type

Truck Access Requirements

Forklift Requirements

This information helps ensure that the structural openings and building operation work together.

Overhead Crane & Mezzanine Options

Steel Warehouse with Overhead Crane

If your warehouse needs an overhead crane, the crane requirements should be provided before structural design.

Important information may include:

Crane Capacity

Crane Span

Lifting Height

Runway Length

Crane Type

Duty Class

Wheel Loads

Crane loads can affect:

Columns

Rafters

Connections

Bracing

Foundation Loads

For this reason, crane requirements should not be treated as an afterthought.

Steel Warehouse with Mezzanine

A mezzanine can create additional usable floor space for:

Offices

Storage

Production

Staff areas

Equipment

If a mezzanine is required, it should be considered during the initial structural design.

Warehouse Insulation

Insulation Should Match the Building's Purpose

Not every warehouse needs the same insulation level.

General Storage

A single-layer steel sheet may be suitable when temperature control is not important.

Worker-Occupied Workshop

Insulated walls and roofing can improve indoor comfort.

Temperature-Controlled Storage

Higher-performance insulated panels may be required.

Fire-Sensitive Buildings

Rock wool systems may be considered where fire performance is a major requirement.

The appropriate insulation system depends on:

Climate

Indoor temperature requirements

Building usage

Fire requirements

Local standards

Budget

Ventilation & Natural Lighting

Improve the Working Environment

Depending on the warehouse application, ventilation and natural lighting can be incorporated into the building design.

Possible solutions include:

Roof Ventilators

Ridge Ventilation

Wall Louvers

Mechanical Ventilation Provisions

Skylights

Translucent Roof Panels

Windows

For agricultural and livestock buildings, ventilation requirements can be particularly important.

For industrial buildings, ventilation should be considered together with equipment, worker occupancy and indoor heat generation.

Corrosion Protection

Surface Treatment for Different Environments

Steel protection should be selected according to the building environment.

Typical considerations include:

Indoor / Outdoor Exposure

Humidity

Coastal Conditions

Industrial Pollution

Chemical Exposure

Required Service Life

Maintenance Requirements

Typical Painting Process

Surface Preparation → Primer → Intermediate Coat → Top Coat

For projects with higher corrosion requirements, the coating system can be specified according to the project environment.

Selected components may also be galvanized where required.

Corrosion protection should be specified according to the actual exposure environment rather than choosing a coating system only by initial price.

Steel Warehouse Manufacturing Process

From Engineering Drawing to Finished Steel Components

A reliable steel building depends on more than good raw materials.

The engineering drawings, fabrication process, quality control and packing system all affect the final installation.

Our typical production process includes:

01 — Engineering

Project requirements are reviewed and the structural system is developed.

02 — Shop Drawings

Detailed fabrication drawings are prepared based on the approved design.

03 — Material Procurement

Steel plates, sections and accessories are prepared according to the approved material specifications.

04 — Cutting

Steel plates and sections are cut according to fabrication drawings.

05 — Hole Drilling & Processing

Connection holes and other required machining are completed according to the drawings.

06 — Assembly

Steel components are assembled before welding.

07 — Welding

Welding is completed according to the fabrication requirements.

08 — Correction & Grinding

Components are checked and corrected where necessary.

09 — Shot Blasting

Surface preparation is completed before painting.

10 — Painting

The specified coating system is applied.

11 — Inspection

Finished components are inspected before packing.

12 — Marking

Components are marked according to the shop drawings and erection sequence.

13 — Packing

Components are packed according to the shipping and installation requirements.

14 — Container Loading

Materials are loaded with attention to container capacity, protection and unloading sequence.

15 — Export & Shipping

Shipping can be arranged according to the agreed delivery terms.

16 — Installation Support

Installation drawings and technical support can be provided according to the project scope.

Quality Control

Quality Is Controlled Before the Steel Leaves the Factory

Quality control should not start when the container reaches the destination.

It begins during engineering and continues throughout fabrication.

Raw Material Inspection

Steel Grade

Material Certificates

Plate Thickness

Section Dimensions

Fabrication Inspection

Cutting Dimensions

Member Length

Hole Position

Assembly Accuracy

Welding Quality

Surface Treatment Inspection

Surface Preparation

Paint System

Paint Thickness

Coating Appearance

Finished Product Inspection

Member Dimensions

Connection Details

Marking

Accessories

Packing Condition

Pre-Shipment Inspection

Before loading, the finished steel structure can be checked against:

Shop Drawings

Material List

Packing List

Project Requirements

The objective is straightforward:

The components should arrive at the project site ready to be identified, assembled and installed according to the approved drawings.

What You Receive

Engineering & Design

Depending on the agreed project scope, we can provide:

Preliminary Design

Structural Design

Structural Calculation

3D Steel Model

Shop Drawings

Connection Details

Material List

Fabrication Drawings

Installation Drawings

Steel Structure

The supply scope can include:

Primary Steel Frame

Secondary Steel Structure

Bracing System

Purlins

Girts

Eave Struts

Connection Plates

Base Plates

Bolts

Other Structural Accessories

Roofing & Wall System

Depending on the selected building system:

Roofing Steel Sheet

Wall Steel Sheet

EPS Sandwich Panels

Rock Wool Sandwich Panels

PU/PIR Sandwich Panels

Flashings

Ridge Caps

Corner Trims

Gutters

Downpipes

Fasteners

Doors & Windows

Optional components may include:

Roller Shutter Doors

Sliding Doors

Personnel Doors

Fire Doors

Windows

Louvers

Ventilation Components

What Determines the Cost of a Steel Structure Warehouse?

Why Two Similar Warehouses Can Have Very Different Prices

When comparing steel warehouse quotations, looking only at the price per ton or price per square meter can be misleading.

Two suppliers may quote the same building dimensions but use different:

Design Loads

Structural Systems

Steel Grades

Member Sizes

Bay Spacing

Connection Designs

Roof Systems

Wall Systems

Insulation

Doors

Surface Treatment

Engineering Scope

Accessories

Shipping Terms

For example, two suppliers may both quote a 40 m × 80 m warehouse, but the structural steel weight may be different.

That does not automatically mean one supplier is overcharging.

The first question should be:

Are the two quotations based on the same engineering assumptions and the same supply scope?

A meaningful comparison should consider the complete building solution rather than only the steel price.

Main Steel Warehouse Cost Factors

01 — Building Size

Length, width and height affect the amount of structural steel, cladding and accessories required.

02 — Clear Span

Large clear spans usually require stronger structural members and more careful engineering.

03 — Building Height

A higher building may require additional structural material and can affect wind loads and foundation reactions.

04 — Wind Load

Local wind conditions can have a significant influence on structural design.

05 — Snow Load

Projects in snow regions may require stronger roof systems and structural members.

06 — Seismic Requirements

Seismic design requirements can affect the structural system, bracing and connections.

07 — Crane Loads

Overhead cranes can significantly affect columns, rafters, connections and foundations.

08 — Roof & Wall Systems

Single-layer steel sheets and insulated sandwich panels have different costs and performance characteristics.

09 — Insulation

Higher thermal requirements normally increase the building envelope cost.

10 — Doors & Openings

Large doors and multiple openings require additional framing and accessories.

11 — Corrosion Protection

Projects in coastal or aggressive environments may require enhanced surface protection.

12 — Shipping

International shipping costs can depend on:

Total Weight

Container Quantity

Packing Method

Loading Efficiency

Destination Port

Incoterms

How We Develop a Steel Warehouse Project

Step 1 — Send Your Project Information

You do not need to have every specification ready.

The following information is enough to start:

Project Location

Building Length

Building Width

Eave Height

Building Usage

Available Drawings

Door Requirements

Crane Requirements

Insulation Requirements

Step 2 — Engineering Review

Our team reviews the information and identifies missing technical requirements.

We consider:

Understand → Clarify → Evaluate → Recommend → Quote

Step 3 — Preliminary Solution

We develop a suitable structural and building system based on your requirements.

Step 4 — Project Quotation

The quotation can be prepared according to the agreed scope, including:

Steel Structure

Roofing

Wall System

Doors

Accessories

Engineering

Packing

Shipping

The exact scope depends on the project.

Step 5 — Detailed Engineering

After order confirmation, detailed engineering and shop drawings are prepared.

Step 6 — Drawing Approval

The drawings are reviewed and approved before production.

Step 7 — Fabrication

Steel components are manufactured according to the approved drawings.

Step 8 — Quality Control

The finished components are inspected before packing.

Step 9 — Packing & Shipping

The steel structure and accessories are marked, packed and loaded for international transportation.

Step 10 — Installation Support

Installation drawings and technical support are provided according to the agreed project scope.

Typical Steel Warehouse Project Workflow

Project Requirements
        ↓
Engineering Review
        ↓
Preliminary Solution
        ↓
Quotation
        ↓
Order Confirmation
        ↓
Structural Design
        ↓
Shop Drawings
        ↓
Drawing Approval
        ↓
Material Preparation
        ↓
Fabrication
        ↓
Quality Control
        ↓
Marking & Packing
        ↓
Container Loading
        ↓
Shipping
        ↓
Site Installation
